FOCUS Series Nozzles
(With XQF Quick Connect X-KAR nozzles can fit many other Hot Air Tools)
Designed to be light-weight (low mass), to give repeatable temperature readings, thin wall to fit crowded PCBs, made of stainless steel to last forever.
(Patent pending).
Custom nozzles available upon request.
|
BGA/CSP FOCUS SERIES CONVECTION NOZZLES
|
Part
Number |
Nozzle
Number |
A
(inside diameter) |
Suggested
Package |
Inch |
mm |
XNB-100A |
XNB
7X7 |
0.315 |
8 |
BGA16,
BGA25 |
XNB-100 |
XNB
8X8 |
0.393 |
10 |
BGA16,
BGA25 |
XNB-100B |
XNB
10,5X10,5 |
0.413 |
10,5 |
BGA16,
BGA25 |
XNB-100C |
XNB
7,5X9 |
0.295x0.354 |
7,5x9 |
BGA16,
BGA25 |
XNB-101A |
XNB
12,4X12,4 |
0.488 |
12,4 |
BGA49, BGA 64 |
XNB-101 |
XNB
12X12 |
0.551 |
14 |
BGA49, BGA 64 |
XNB-102A |
XNB
13,6X13,6 |
0.512 |
13 |
BGA49, BGA 64 |
XNB-102 |
XNB
13X13 |
0.590 |
15 |
BGA49, BGA 64 |
XNB-103 |
XNB
15X15 |
0.669 |
17 |
BGA81, BGA100 |
XNB-104 |
XNB
17X17 |
0.748 |
19 |
BGA121 |
XNB-105 |
XNB
19X19 |
0.787 |
21 |
BGA141,
BGA121 |
XNB-106 |
XNB
23X23 |
0.984 |
25 |
BGA169 |
XNB-107 |
XNB
27X27 |
1.142 |
29 |
BGA324,
BGA225, BGA289 |
XNB-108 |
XNB
35X35 |
1.457 |
37 |
BGA529,
BGA484 |
XNB-109 |
XNB
38X38 |
1.575 |
40 |
BGA576,
BGA625 |
XNB-110 |
XNB
40X40 |
1.654 |
42 |
BGA625,
BGA676 |
XNB-111 |
XNB 5,5X13,5 |
0.216x0.531 |
5,5x13,5 |
BGA49, BGA64 |
XNB-112 |
XNB 11.3X12,4 |
0.445x0.488 |
11,3x12,4 |
BGA49, BGA64 |
XNB-113 |
XNB 7X7 |
0.315 |
8 |
BGA16, BGA25 |
XNB-114 |
XNB
8,8X8 |
0.346x0.315 |
8,8x8 |
|
XNB-115 |
XNB
5.5X15,9 |
0.216x0.626 |
5,5x15,9 |
|
XNB-116 |
XNB
6,8x7,4 |
0.268x0.291 |
6,8x7,4 |
|
XNB-117 |
XNB
7x11 |
0.276x0.433 |
7x11 |
|
XNB-118 |
XNB
11x33 |
0.433x1.299 |
11x33 |
|
XNB-119 |
XNB
7,6x7,6 |
0.299x0.299 |
7,6x7,6 |
|
XNB-120 |
XNB
12x14 |
0.472x0.551 |
12x14 |
|
XNB-121 |
XNB
6x6 |
0.236x0.236 |
6x6 |
|
XNB-122 |
XNB
15x28 |
0.590x1.102 |
15x28 |
|
XNB-123 |
XNB
32x32 |
1.260x1.260 |
32x32 |
|
|

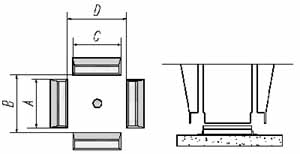

QFP/BQFP FOCUS SERIES CONVECTION NOZZLES
|
Part
Number |
Nozzle
Number |
A |
B |
C |
D |
Suggested
Package |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
XNQ-200 |
XNQ
12x12 |
0.472 |
12 |
0.551 |
14 |
0.472 |
12 |
0.551 |
14 |
QFP64,
QFP48, QFP80, BQFP28 |
XNQ-201 |
XNQ
14x14 |
0.591 |
15 |
0.677 |
17,2 |
0.591 |
15 |
0.677 |
17,2 |
SQFP100,
TQF100 |
XNQ-202 |
XNQ
14x20 |
0.591 |
15 |
0.665 |
16,9 |
0.827 |
21 |
0.906 |
23 |
QFP128,
QFP80, QFP100 |
XNQ-203 |
XNQ
16x16 |
0.629 |
16 |
0.826 |
21 |
0.629 |
16 |
0.826 |
21 |
BQFP100T25,
QFPT63 |
XNQ-204 |
XNQ
17.5x17.5 |
0.590 |
15 |
0.728 |
18,5 |
0.590 |
15 |
0.728 |
18,5 |
BQFP84 |
XNQ-205 |
XNQ
24x24 |
0.827 |
21 |
0.953 |
24,2 |
0.827 |
21 |
0.953 |
24,2 |
BQFP132,
FQFP176 |
XNQ-206 |
XNQ
28x28 |
1.142 |
29 |
1.220 |
31 |
1.142 |
29 |
1.220 |
31 |
QFP128,
SQFP208 |
XNQ-207 |
XNQ
32x32 |
1.220 |
31 |
1.315 |
33,4 |
1.220 |
31 |
1.315 |
33,4 |
QFP184T,
FQFP408 |
XNQ-208 |
XNQ
37x37 |
1.220 |
31 |
1.457 |
37 |
1.220 |
31 |
1.457 |
37 |
BQFP196 |
XNQ-209 |
XNQ
40x40 |
1.535 |
39 |
1.654 |
42 |
1.535 |
39 |
1.654 |
42 |
BQFP244 |
|

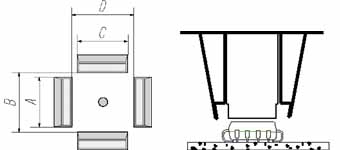

PLCC FOCUS SERIES CONVECTION NOZZLES
|
Part
Number |
Nozzle
Number |
A |
B |
C |
D |
Suggested
Package |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
XNP-300 |
XNP
7,3x12,5 |
0.272 |
6,9 |
0.354 |
9 |
0.272 |
6,9 |
0.551 |
14 |
PLCC
7,3X12,5 |
XNP-301 |
XNP
11,5x11,5 |
0.394 |
10 |
0.512 |
13 |
0.394 |
10 |
0.512 |
13 |
PLCC28 |
XNP-302 |
XNP
11,5x14 |
0.591 |
15 |
0.591 |
15 |
0.394 |
10 |
0.512 |
13 |
PLCC
11,5X14 |
XNP-303 |
XNP
17,5x17,5 |
0.591 |
15 |
0.728 |
18,5 |
0.591 |
15 |
0.728 |
18,5 |
PLCC44 |
XNP-304 |
XNP
20x20 |
0.748 |
19 |
0.827 |
21 |
0.748 |
19 |
0.827 |
21 |
PLCC52 |
XNP-305 |
XNP
25x25 |
0.945 |
24 |
1.024 |
26 |
0.945 |
24 |
1.024 |
26 |
PLCC68 |
XNP-306 |
XNP
30X30 |
1.142 |
29 |
1.220 |
31 |
1.142 |
29 |
1.220 |
31 |
PLCC84 |
XNP-307 |
XNP
11,5x25 |
0.945 |
24 |
1.354 |
34,4 |
0.394 |
10 |
0.480 |
12,2 |
PLCC
11.5x25 |
XNP-308 |
XNP 9x9 |
0.272 |
6,9 |
0,299 |
7,6 |
0.272 |
6,9 |
0,299 |
7,6 |
LQFP 48 |
|
SO/SOL FOCUS SERIES CONVECTION NOZZLES
|
Part
Number |
Nozzle
Number |
A |
D |
Suggested
Package |
inch |
mm |
inch |
mm |
XNS-400 |
XNS
4.4x10 |
0.394 |
10 |
0.189 |
4,8 |
SO16 |
XNS-402 |
XNS
5.6x13 |
0.591 |
15 |
0.224 |
5,7 |
SSOP8T |
XNS-403 |
XNS
7.6x15 |
0.630 |
16 |
0.283 |
8,2 |
SOL20/26,
TSOP20/24 |
XNS-404 |
XNS
7.6x18 |
0.748 |
19 |
0.283 |
8,2 |
TSOP24 |
XNS-405 |
XNS
7.6x12.7 |
0.472 |
12 |
0.323 |
8,2 |
SOL20,
TSOP28 |
XNS-406 |
XNS
19x8 |
0.315 |
8 |
0.748 |
19 |
TSOP32 |
XNS-407 |
XNS
8.6x18 |
0.748 |
19 |
0.343 |
8,7 |
TSOP28/32 |
XNS-408 |
XNS
18.5x12 |
0.748 |
15 |
0.728 |
19,5 |
TSOP40/48 |
XNS-409 |
XNS
13x28 |
1.142 |
29 |
0.531 |
13,5 |
PSOP44 |
XNS-410 |
XNS
21X11.3 |
0.827 |
21 |
0.445 |
11,3 |
SOP32 |
XNS-411 |
XNS 11,5X27,5 |
0.439 |
11,5 |
1.083 |
27,5 |
SOP32 |
XNS-412 |
XNS 4,4X5 |
0.173 |
4,4 |
0.199 |
5 |
|
|

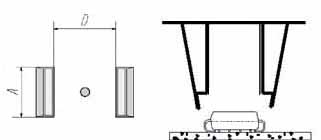

SOJ FOCUS SERIES CONVECTION NOZZLES
|
Part
Number |
Nozzle
Number |
A |
D |
Suggested
Package |
inch |
mm |
inch |
mm |
XNS-401 |
XNS
15x8.2 |
0.591 |
15 |
0.323 |
8,2 |
SOJ20 |
XNS-413 |
XNS 4,9x19 |
0.193 |
4,9 |
0.748 |
19 |
|

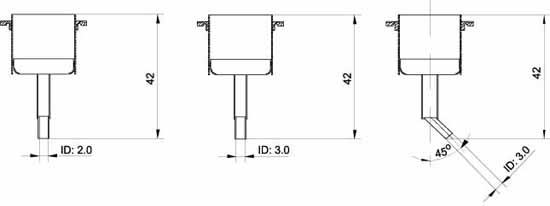

DISCRETE NOZZLES
Five sizes to choose from. XND-3 and XND-4 for use when high air/gas flow is
needed.
|
XND-1 |
XND-2 |
XND-3 |
|
|
XND-4
|
XND-5
|
Example of a special custom nozzle

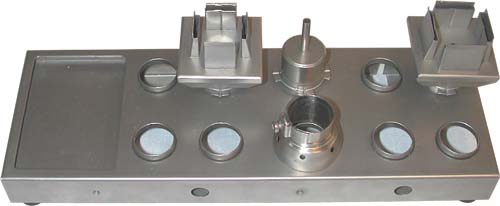

XNH-1 Nozzle holder with storage compartment

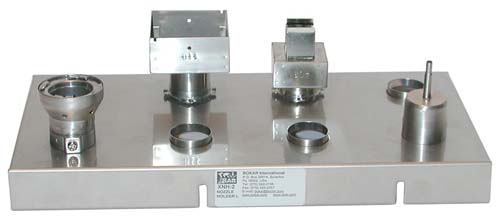

XNH-2 Nozzle holder for large nozzles
XQF - Quick Connect
This nozzle adapter makes the nozzle change fast and easy |
|
