Mini Nozzles for Mini Hot Air Tool
 |
BGA/CSP Mini Convection Nozzles |
| Part Number | A (inside diameter) | |
|---|---|---|
| Inch | mm | |
| XMB-100 | 0.291 | 7,4 |
| XMB-100A | 0.315 | 8 |
| XMB-101A | 0.488 | 12,4 |
| XMB-102A | 0.512 | 13 |
| XMB-111 | 0.275 | 7 |
 |
QFP/BQFP Mini Convection Nozzle |
| Part Number | A | B | C | D | ||||
|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | inch | mm | |
| XMQ-200 | 0.275 | 7 | 0.315 | 8 | 0.275 | 7 | 0.315 | 8 |
 |
SO/SOL Mini Convection Nozzle |
| Nozzle Number | A | D | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| XMS-400 | 0.260 | 6,6 | 0.205 | 5,2 |

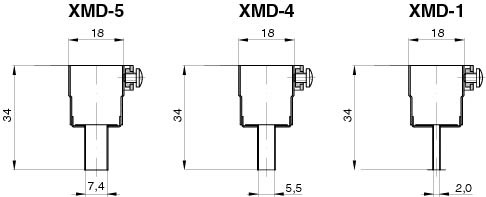

Mini Discrete Nozzles
