X-FineRework-S Precision Rework System for boards up to
12” wide |
X-FineRework-S is a Unique, Modular, Digital PID Control SMT Rework/Repair System with integrated Pre-heater, which offers precise and accurate monitoring of process temperatures at a working point on a PCB. Also, allows pre-setting of exact temperature of air stream at the end of Hot Air Pencil Nozzle. The accuracy is achieved by a unique feature, user adjustable offset, which compensates for differences in PCBs' being reworked (dual or multi-layer, high and low mass) in case of pre-heater settings, and differences in tips or nozzles in case of soldering iron tip and hot air stream temperature settings.
The unique, high performance of the unit is possible due to use of the newest microprocessor technology and thorough
programming of all control and monitoring functions combined with PID temperature control of all heaters.
- Accurate and precise temperature settings and monitoring at the working point on the board:
- state of the art microprocessor technology, thorough programming, digital compensation of sensors non-linearity's and heat loss at different temperatures;
- PID control of all heaters (accuracy and extended heaters' life);
- user-adjustable offsets for pre-heater and soldering tools;
- digital display of settings and actual parameters on front panels.
- Repeatability of the process from board to board (digital storage of profiles and settings).
- Board holder for regular and irregular shape boards, which accommodates boards up to 12" wide.
- Enhanced alignment of a part with pads on a board with precise adjustments in X and Y axis and rotation of a top hot air/gas tool, which is mounted in a precise X, Y and Q rotation stage.
- Programmable time/temperature settings (profiling with cool mode and profile storage).
- Ease of use. Rework process controlled by Focus "X".
- Large selection of standard, lightweight nozzles. Custom nozzles are available upon request.
- Fully antistatic. Supplied with ESD grounding wire and a wrist strap.
- Built-in Hot Air Pencil/Iron and Vacuum Pick-up Tool.
- Self containing air and vacuum sources.
- Solid and strong metal (not plastic) construction guaranteeing long service life.
- Compatibility with all X-KAR Brand Rework Attachments and Accessories (XIL-2
High Intensity, long life Illumination System, XHT-1P Small Handle Hot Air Tool, XmP-1S Micro Print Head Set, XK-AL Automatic Lift at the end of reflow,
etc.).
|

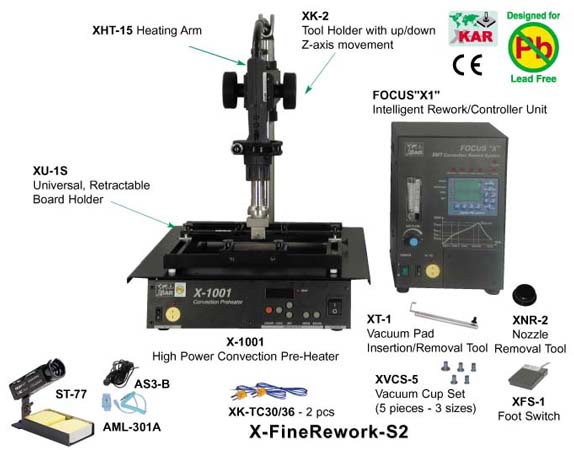

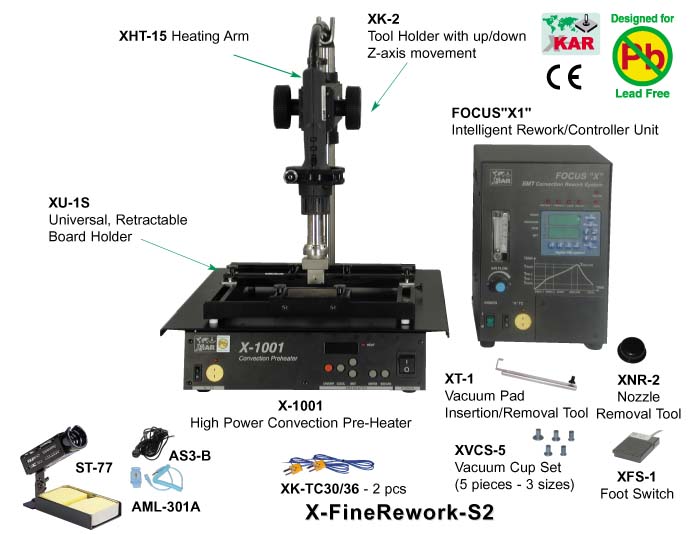

X-FineRework-S
Series
|
 |
 |
 |
 |
 |
 |
|
 |
|
Please Choose base combination, which BEST suites your needs |
- Programmable, Intelligent SMT Rework/Repair Unit. Patented in US, Japan and Europe
- Digital, SMT High Power, Large Area Under board Pre
heater
- Universal, Retractable Board Holder for boards up to
12" wide
|
Tool Stand with up/down Z axis movement |
High Intensity, long life Illumination System |
| with fine X-Y positioning, rotation, and Auto Lift |
with fine X-Y positioning, rotation |
with Auto Lift |
|
| What it Contains |
FOCUS"X1" |
X-1001 |
XU-1S |
XK-4AL |
XK-4 |
XK-2AL |
XK-2 |
XIL-2 |
| X-FineRework-S-AL-IL |
X |
X |
X |
X |
|
|
|
X |
| X-FineRework-S-AL |
X |
X |
X |
X |
|
|
|
|
| X-FineRework-S-IL |
X |
X |
X |
|
X |
|
|
X |
| X-FineRework-S |
X |
X |
X |
|
X |
|
|
|
| X-FineRework-S2-AL-IL |
X |
X |
X |
|
|
X |
|
X |
| X-FineRework-S2-AL |
X |
X |
X |
|
|
X |
|
|
| X-FineRework-S2-IL |
X |
X |
X |
|
|
|
X |
X |
| X-FineRework-S2 |
X |
X |
X |
|
|
|
X |
|
All systems additionally include:
- Nozzle #107 - Nozzle XNB-27x27 for BGA225 Component
- XCB-1R - Cord connecting Focus "X" with Pre-heater Based
Rework System SMT-SerwiCE or Preheaters X-1000.
If you need any other, not listed combination, please contact either the
distributor or factory direct at: bokar@bomir.com.
We will certainly accommodate you and give you what you really need.
Please note that all X-KAR Subsystems are interchangeable. You will be able
to add later any other subsystem if you needed. E.g. Use XK-4 instead of XK-2 or
change manual lift for Auto-lift or interchange SMT-ServiCE with X-1001
Pre-heater etc.
Optional and absolutely recommended accessories:
- XFR-Commander Control Software
which brings X-FineRework to another level
- X485-USB Converter A Converter which
allows for connection of FOCUS "X" and SMT-ServiCE to a PC
(Desktop or Laptop) to upgrade Firmware (if needed) and to control and
program entire system from a PC.
